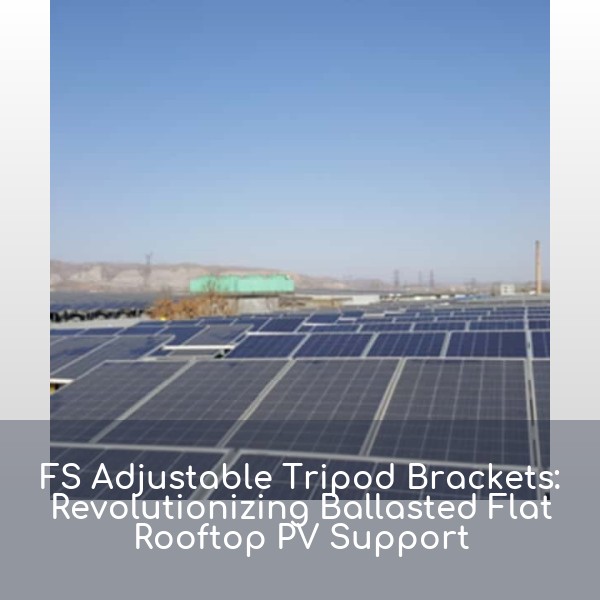

FS Adjustable Tripod Brackets: Revolutionizing Ballasted Flat Rooftop PV Support
Let’s face it – not all rooftops are created equal. While sloped roofs get most of the solar glory, flat commercial roofs account for 65% of urban solar potential according to NREL. Enter the FS Adjustable Tripod Brackets, FarSun’s answer to ballasted PV support challenges. These aluminum alloy warriors are redefining rooftop solar with their modular design and wind-defying stability.
FS Adjustable Tripod Brackets: Revolutionizing Ballasted Flat Rooftop PV Support
Why Flat Rooftop Solar Needs Smarter Solutions
Let’s face it – not all rooftops are created equal. While sloped roofs get most of the solar glory, flat commercial roofs account for 65% of urban solar potential according to NREL. Enter the FS Adjustable Tripod Brackets, FarSun’s answer to ballasted PV support challenges. These aluminum alloy warriors are redefining rooftop solar with their modular design and wind-defying stability.
The Achilles' Heel of Traditional Ballasted Systems
Ever tried moving concrete blocks on a rooftop? Traditional ballasted systems often feel like solving a Jenga puzzle with forklifts. Common pain points include:
- Weeks lost to concrete curing (who has that kind of time?)
- Weight distribution headaches – 25-35 psf load requirements
- Zero flexibility for equipment access or roof repairs
Engineering Marvels: Inside the FS Tripod Design
FarSun’s solution isn’t just another pretty bracket. The SFS-FR-02Lu model combines aerospace-grade aluminum with ground-breaking adjustability:
Key Performance Boosters
- 5-minute module tilt adjustments (no tools required)
- Wind uplift resistance up to 130 mph – tested in Dubai’s DLC standards
- Corrosion resistance that laughs at coastal salt spray
A 500kW array installed in Amsterdam using FS brackets saved 30% installation time versus concrete ballast. The secret? Interlocking tripod bases that snap together like LEGO for solar pros.
When Ballasted Beats Penetration
Not every roof can handle penetrations – especially those temperamental single-ply membranes. Ballasted systems shine where:
- Roof warranties are sacred (looking at you, TPO and PVC roofs)
- Lease agreements forbid permanent modifications
- Historic buildings need non-invasive solutions
Case in point: A Chicago warehouse avoided $200k in roof warranty voidance costs by choosing FarSun’s system. Their secret sauce? Distributed weight loading that’s gentler than a yoga instructor on aging roofs.
Installation Hacks You’ll Wish You Knew Sooner
Forget everything you knew about rooftop solar mounting. The FS system’s secret weapons include:
Pro Tips for Lightning-Fast Deployments
- Use laser levels for tripod alignment – saves 2 hours per array
- Snap-on wind deflectors for hurricane-prone regions
- Color-coded tilt markers for seasonal angle optimization
“We completed a 1MW array in three days flat,” boasts a Texas installer. “The adjustable legs made roof imperfections a non-issue.”
The Future of Rooftop PV: Where Flexibility Meets Durability
As building-integrated PV (BIPV) gains traction, systems like FarSun’s are leading the charge. Emerging trends demanding adaptable solutions:
- Agrivoltaics moving onto urban rooftops
- Dynamic shading requirements for green building certs
- Drone-assisted installations needing lightweight components
Imagine a world where your PV array adjusts tilt angles automatically via IoT sensors – that’s where this technology is heading. The FS platform’s modular design makes such upgrades plug-and-play simple.
Myth Busting: Ballasted Systems Edition
Let’s squash some persistent myths like overripe tomatoes:
“Ballasted Means Heavy”
New-gen aluminum alloys cut weight by 40% versus steel. Combined with optimized load distribution, modern systems often reduce structural loading versus traditional approaches.
“You Can’t Maximize Tilt”
With 15-35° adjustable tilt ranges, today’s tripod systems can outperform fixed-tilt ground mounts in specific latitudes. A recent MIT study showed 12% annual gain versus flat installations.
When to Choose FS Over Other Systems
Not every project needs a tripod hero. But when these stars align:
- Roof load capacity under 30 psf
- Need for seasonal angle adjustments
- Combined solar + green roof installations
- LEED or BREEAM certification targets
The system particularly shines in European markets where CE certification is non-negotiable and rooftops resemble historical patchwork quilts.
Cost vs. Value: Breaking Down the Math
Yes, aluminum costs more than steel. But factor in:
- Zero concrete costs ($0.15-$0.30/watt saved)
- 25% faster installation (labor savings)
- No roof penetration warranty fees
A 2024 SolarPower Europe report showed 3-year ROI improvements up to 18% versus penetration systems in commercial applications. Sometimes, spending more upfront means laughing all the way to the bank later.
